TurboCAD Mac Designer 2D - All-Purpose 2D CAD Software for Mac

TurboCAD Mac v14 Designer 2D

Array

$69.99
Order form
Quantity
TurboCAD Mac v14 Designer 2D

Product Info

TurboCAD®Mac Designer 2D delivers easy to use 2D drafting and design tools typically found in professional level CAD programs, but at an entry level price. You will be able to produce professional looking computer drawings, floor plans, landscape designs, diagrams, production ready schematics, and more.
Key Features

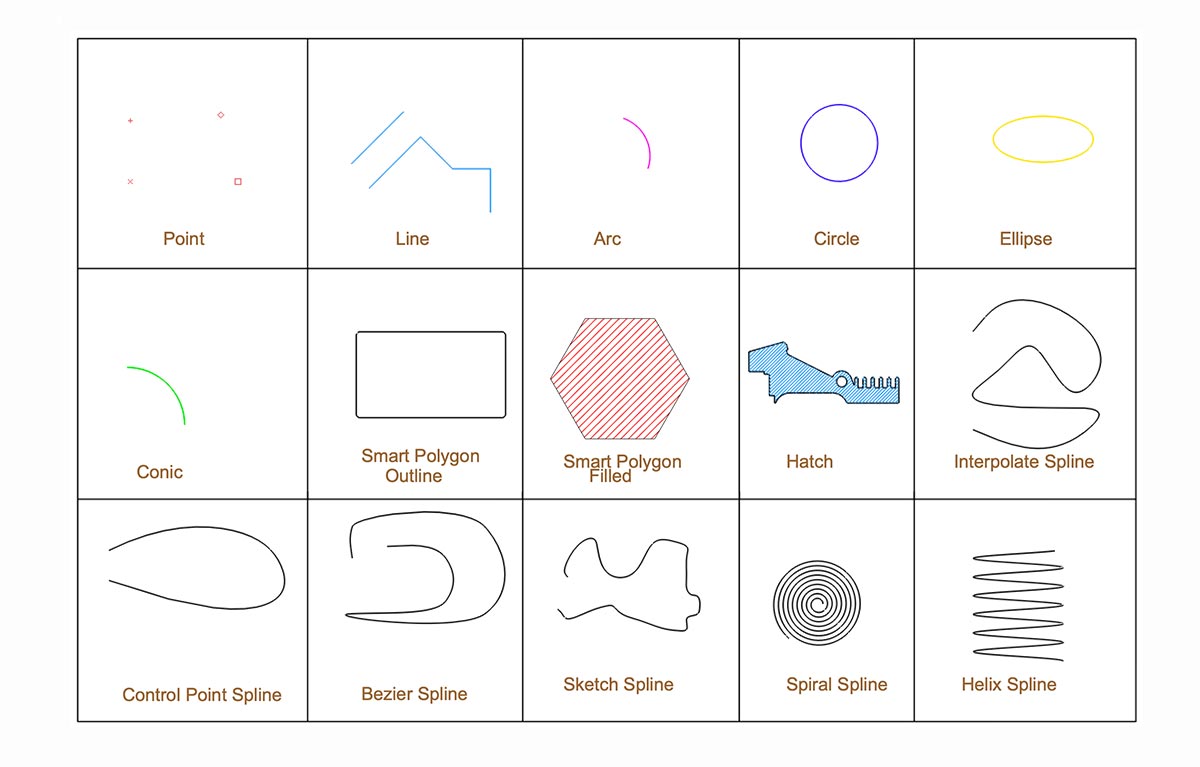

checkmark iconComplete Set of 2D Drafting Tools

checkmark icon500 Floor Plans

checkmark iconOver 7,000 2D symbols and parts

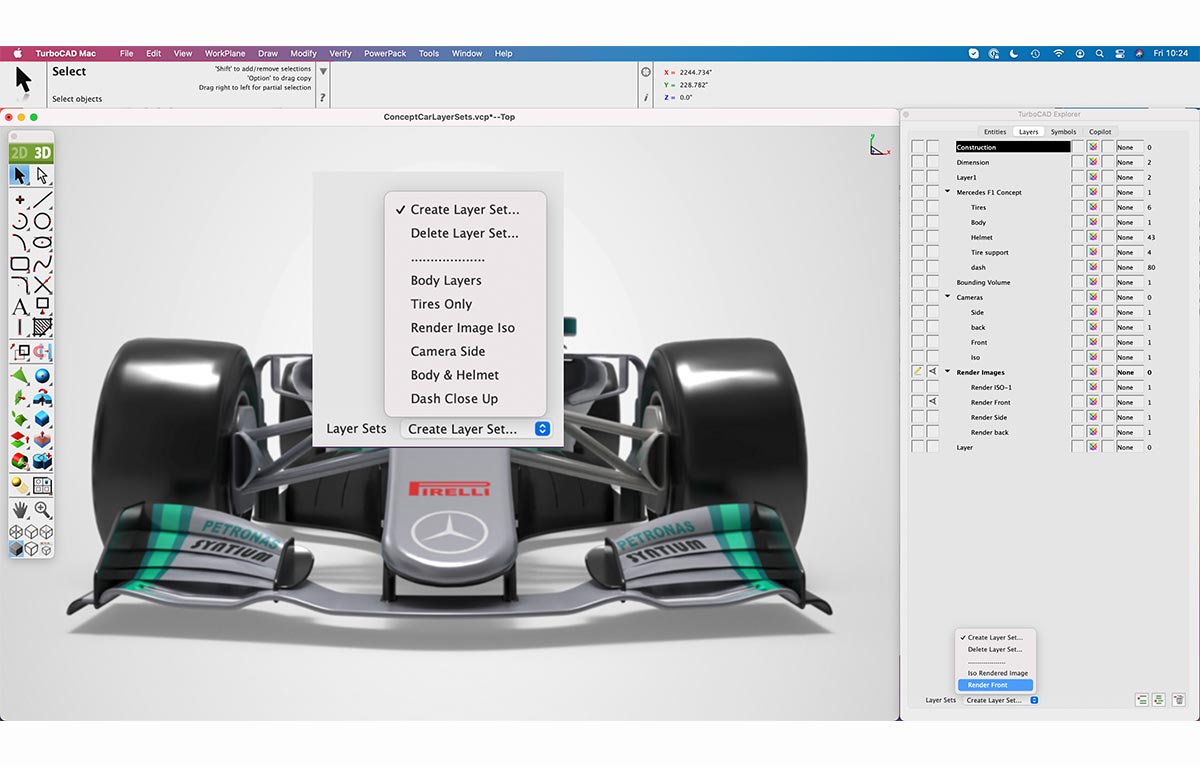

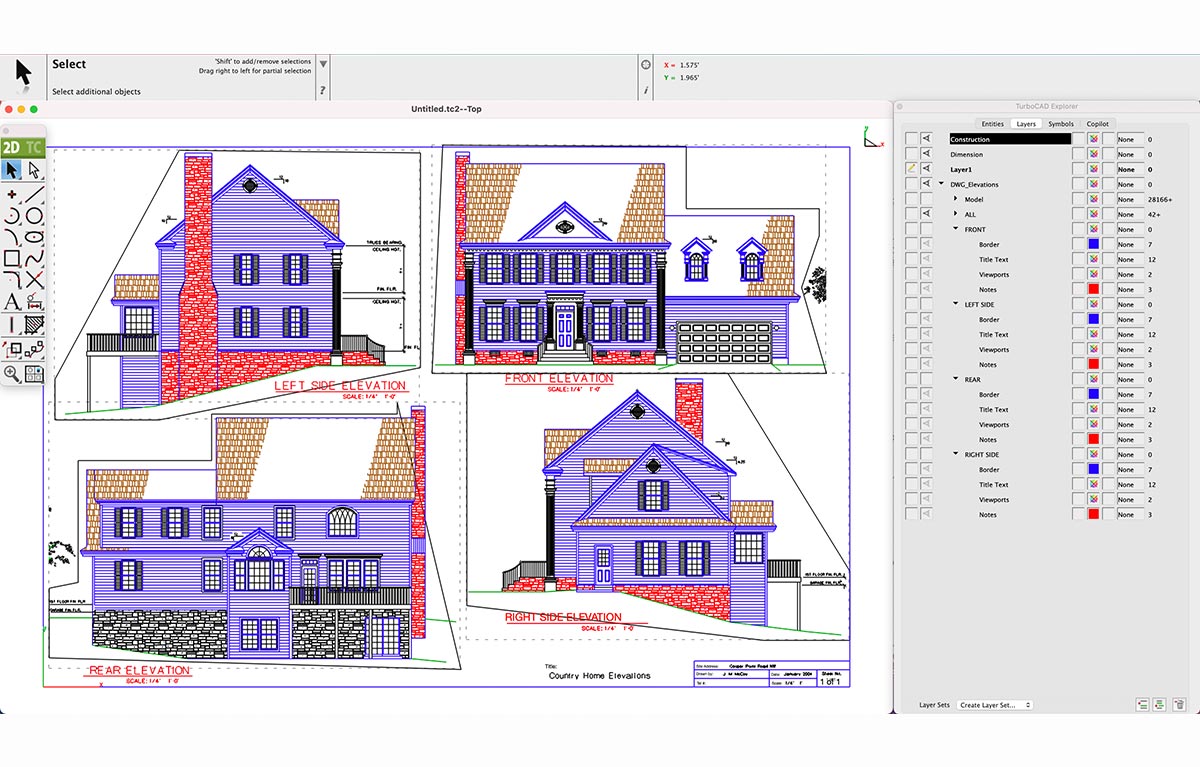

checkmark iconLayers and Layer Sets

checkmark iconArchitectural Design Tools

checkmark iconUpdated BOM Dialog

New Features
Related Products

New Features

BOM Fraction Measurements

The Bill of Material Create BOM feature has a new option to support fraction measurements. To use this feature, select the Attributes and BOM dialog box from the Tools menu. Select your objects and associated a data set such as CutList properties. Apply to selected. Now select the Create BOM option to create a table. In the BOM Settings dialog box, select the Decimals pull down option. And then Select Fractions to display measurements as factions of feet and inches.

ACIS Modeling Engine Update

The core modeling kernel was updated to support a newer version from Spatial.  The new update provides greater increases in quality and robustness and improvements in modeling tasks such as booleans, blending, chamfering, sweeps, skinning, healing, and faceting functionality.

Paraboloid Primitive

The paraboloid primitive provides a means to create a quadric surface from one-, two-, or three-point definitions. Use a paraboloid to create a reflectors/radars, automobile headlights, solar furnaces, antennas, and aerodynamic tips.

Key Features

250+ Drafting Tools

Drafting Assistant will help you layout your design or import existing files for easy editing. With intuitive design tools, novice designers can quickly create precision designs.

Drawing Wizard

Use the drawing wizard to specify the type and precision of the units you want to use. Choose the paper size, orientation, printing scale. Map model space drawings onto your paper sheet, or save settings for future drawings.

Video Tutorials

Browse through our video tutorials with easy to understand guidelines and tips, and improve your user experience.

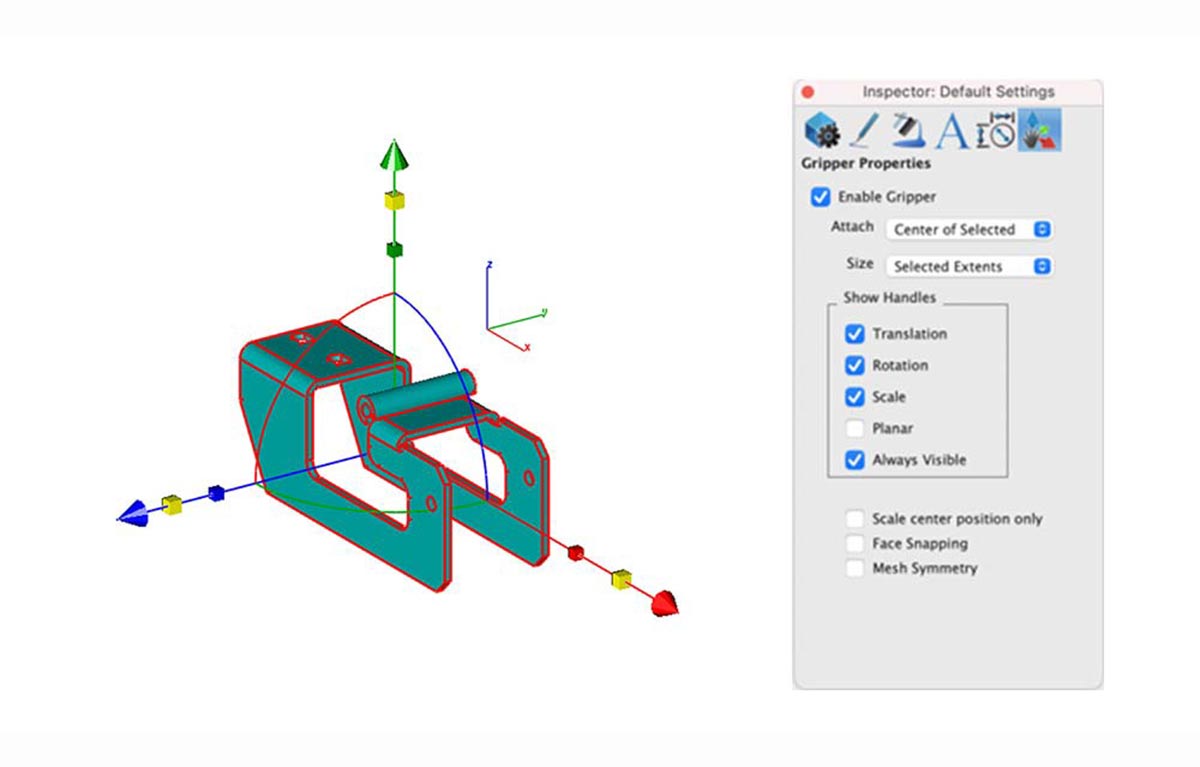

Gripper Tool

See a simulation- like view of your work by using gripper tools and side handles.

Model to Sheet

Use floating model space to use model space tools in paper space to create and layout your drawing in TurboCAD Mac Designer.

2D Doors, Windows & Walls

Insert “smart” windows and doors into walls. Browse through TurboCAD Mac Designer’s large libraries, and specify all features and dimensions.

TurboCAD Mac Designer Reviews

TurboCAD User Gallery

System Requirements

Macintosh® OS 10.11 through 13.0 or higher¹, x64 Intel® Mac®, 3 GB of hard disk space, 8 GB RAM or greater, Mouse Pointing Device (wheel button recommended), OpenGL Compliant video card with 256 MB VRAM, ¹ Program compatibility is not guaranteed for earlier operating systems, require a machine with an operating system using x64 (64-Bit) architecture.
